| Nodulizer Parameters | ||||||||
| No. | Product Name | Specification | Mg(%) | Re(%) | Ca(%) | Si(%) | Al(%) | Size(mm) |
| 1 | Rare earth magnesium ferrosilicon alloy | XYQ-4.5 | 4.5-5.0 | 1.4-1.8 | 1.8-2.2 | 43-47 | ≤0.5 | 5-30 |
| 2 | XYQ-5.0 | 5.0-5.5 | 1.5-2.2 | 1.8-2.2 | 43-47 | <1.0 | ||
| 3 | XYQ-5.5 | 5.5-6.0 | 1.8-2.2 | 2.0-2.5 | 43-47 | <1.0 | ||
| 4 | XYQ-6.0 | 5.7-6.3 | 1.8-2.2 | 2.3-2.7 | 38-42 | <1.0 | ||
| 5 | XYQ-6.5A | 6.6-6.7 | 2.2-2.8 | 2.3-2.7 | 43-47 | <1.0 | ||
| 6 | XYQ-6.5B | 6.0-7.0 | 4.5-6.5 | 1.5-2.0 | 40-44 | ≤0.5 | ||
| 7 | XYQ-7.0A | 7.0-8.0 | 6.5-8.5 | 2.0-2.5 | 40-44 | <1.0 | ||
| 8 | XYQ-7.0B | 7.0-8.0 | 6.5-8.5 | 2.5-3.0 | 40-44 | <1.0 | ||
| 9 | XYQ-8.0A | 7.5-8.5 | 7.2-9.2 | 1.8-2.2 | 40-44 | <1.0 | ||
| 10 | XYQ-8.0B | 7.5-8.5 | 8.0-9.0 | 2.0-3.0 | 40-44 | <1.0 | ||
| We also supply Vermiculizer and Cored wire and Inoculant | ||||||||
Contact us
Anyang Gaorong Metallurgy Resource Co., Ltd.
Add: Anyang, Henan, China
Whatsapp : +86 136 7333 9955
Wechat: +86 136 7333 9955
Email: [email protected]
Web: www.grmetallurgy.com
Ferroalloys, New Products

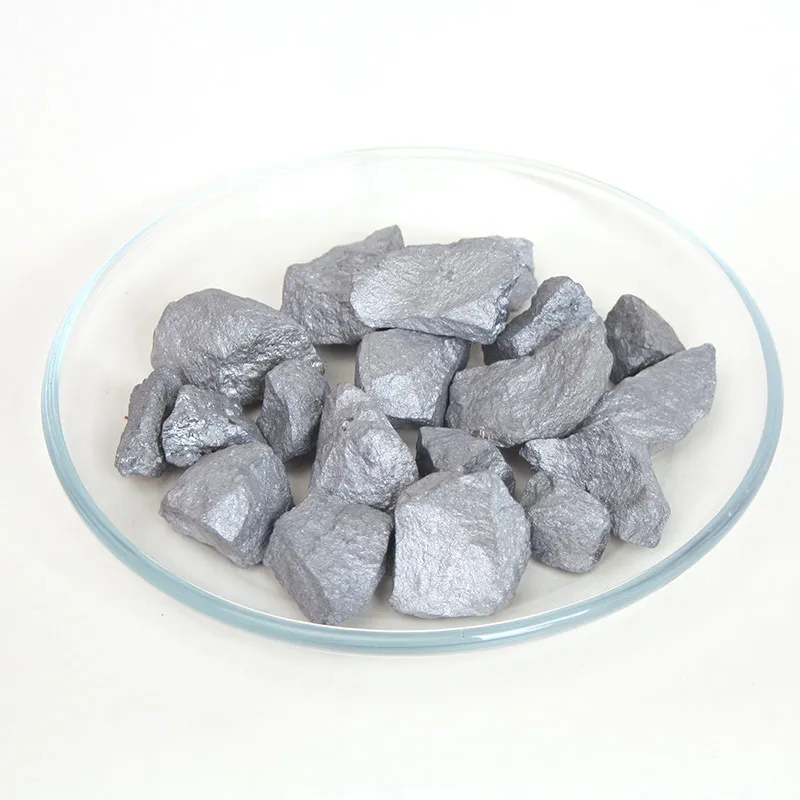

Nodulizer
Nodulizing agent (rare earth magnesium silicon alloy) is an additive that promotes the crystallization of graphite in ductile iron into a spherical shape. It is mainly used in ductile iron. After adding molten iron, it can achieve spheroidization, desulfurization, improve the purity of molten iron, and can also interact with arsenic and zinc. Magnesium with low melting points such as lead and lead react to form compounds with lower melting points that are insoluble in iron. Eliminating these magnesium can prevent interfering elements from destroying spheroidization.
